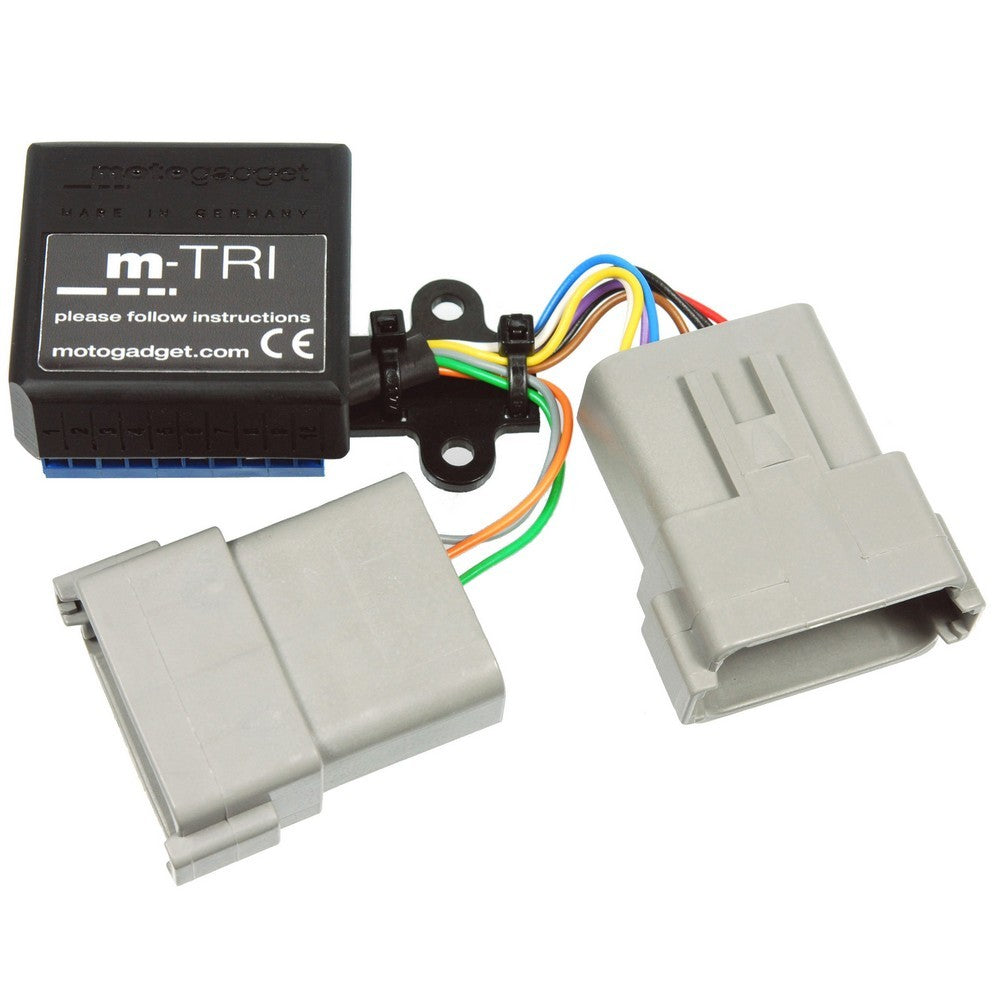

Motogadget M-Tri Gauge Adapter for Triumph Classics

Fits Digitial odometer air cooled models only!

Finally and exclusively available at motogadget – the signal adapter for Triumph Twin and Triple models with CAN bus technology!

In the past, it was not possible to remove the original instruments on the Triumph 2-cylinder models (years 2011 and later) and 3-cylinder models (years 2006 and later). Except for the Breakout Box Triumph – exclusively designed for motoscope Pro – there was no way to operate a motogadget instrument.

Once the original instrument was disconnected, the built-in CAN bus of these models instantly became inoperative. No mods were even possible. The solution – specially designed for use with Twin models – has arrived: the m.tri, exclusively at motogadget.

The m.tri not only provides engine speed and ground speed, but also the signals for the indicator lights: left/right turn signal, low fuel indicator, error memory, high beam, neutral, water temp HIGH, oil pressure.
Note that some of the indicator lights on instruments with 4 or 5 LEDs are multi-functional.

Another big advantage is the fool-proof installation. The original connector is used, and the cables for the instrument and indicator lights are connected to the terminals of the m.tri with colour codes. No soldering or cable detection. No changing the wiring harness. No voiding the vehicle warranty. This simple installation is almost Plug 'n' Ride. It saves time ...and money.

This unit plugs in to the stock gauge plugs. You still need to hook up the gauge you are using to the M-Tri, which is easy and straight forward.

Includes:

• m.tri adapter
• connector (matching the model selected)
• end ferrules
• 2x M3 screws
• cable holder
• cable ties

Available for:

• 2010-2015 Bonneville (All)
• 2010 - 2015 Thruxton
• 2010 - 2016 Scrambler
