Motogadget m.view bar End mirror / M.blaze turn signal adapter BMW cap R Nine T

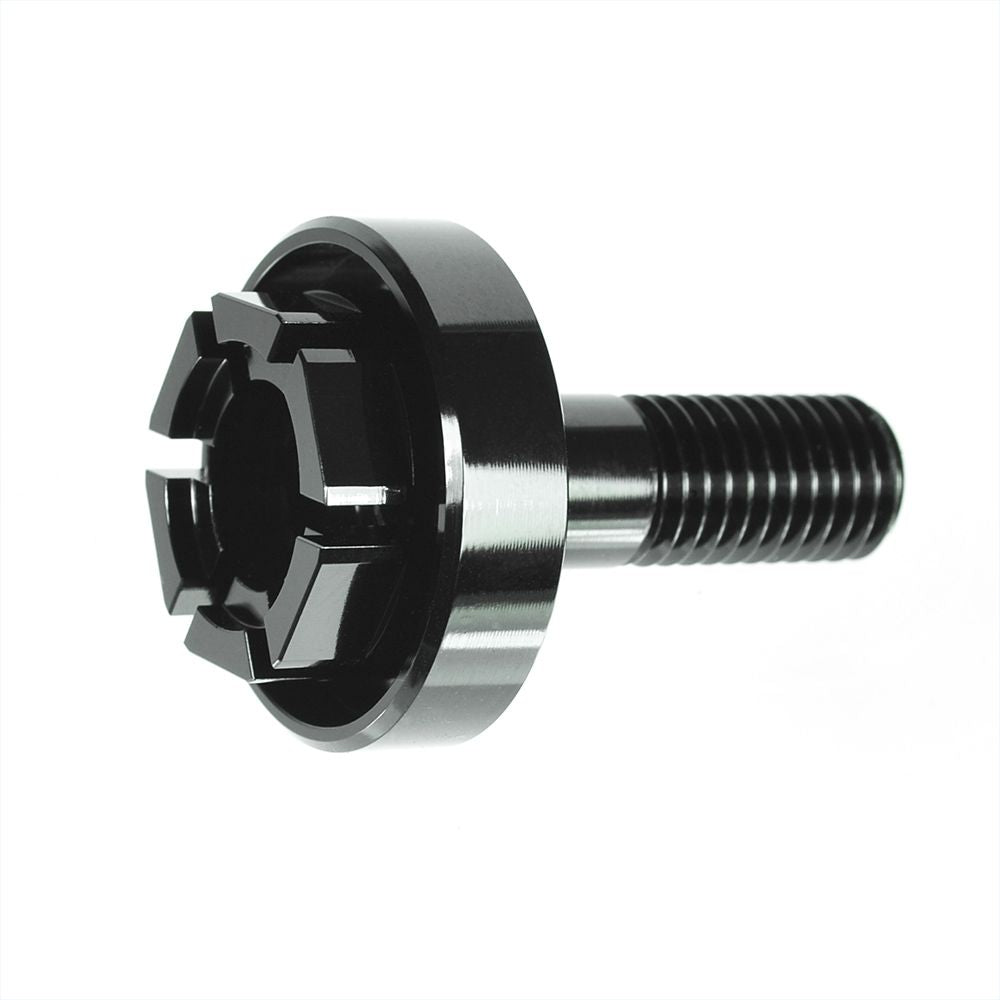

M.view Bar Adapter BMW Disc/Cone

The m.view bar adapter BMW disc/cone allows the mounting of all m.view handlebar end mirrors on BMW handlebars with M12 thread, in combination with the m.blaze handlebar end turn signals, without moving the grips and controls on the handlebars.
It creates a clamping surface for the handlebar end mirror outside the handlebar tube. The following mirrors can be mounted to this adapter: m.view blade, m.view spy, m.view flight, m.view cafe, m.view road, m.view pace, m.view cruise or m.view street.

It is CNC machined from billet aluminum and black anodized.

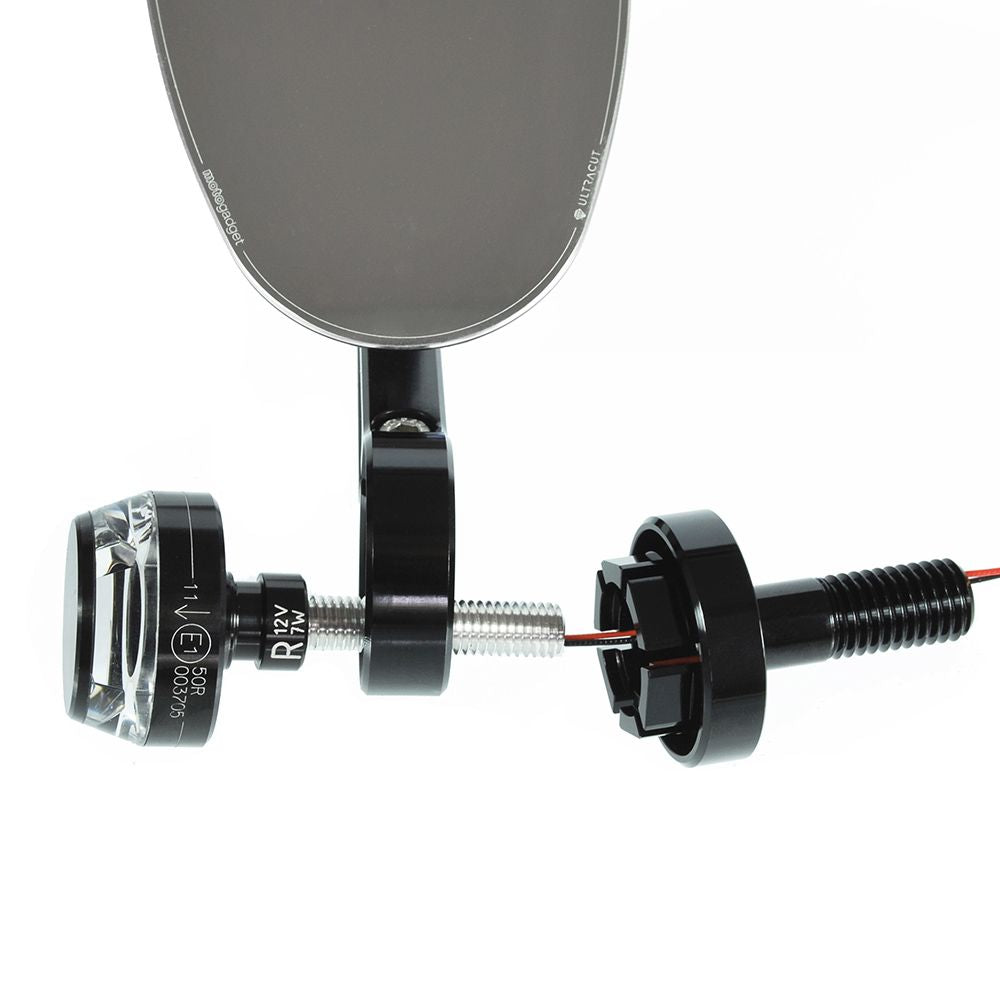

The installation on the handlebar end is done by screwing the M12 thread into the handlebar. Then the handlebar end mirror is clamped on the adapter. This also clamps the handlebar end turn signal in the adapter.

The m.view bar adapter BMW disc/cone comes with two threaded pieces for the left and right side of the handlebar. They fit perfectly to our grips m.grip.

The mounting is done directly into the M12 thread of the BMW handlebar.

Specifications And Features

Dimensions
Fits all BMW handlebars with M12 thread
Total length: approx. 50 mm
Width of clamping surface for mirror: 8 mm, fits all m.view handlebar end mirrors
Diameter of clamping surface: 1 inch, fits all m.view handlebar end mirrors
Weight (1 piece): approx. 20 g

Scope Of Delivery

2 x m.view bar adapter BMW disc/cone , manual

Mirrors and Turn Signals are not included

Price is for 2 adapters, Mirrors and Turn Signals are not included
