Motogadget mo.view sport 110 pivot bar end mirror - 1" Bars

1" handlebar version

mo.view METALMIRROR

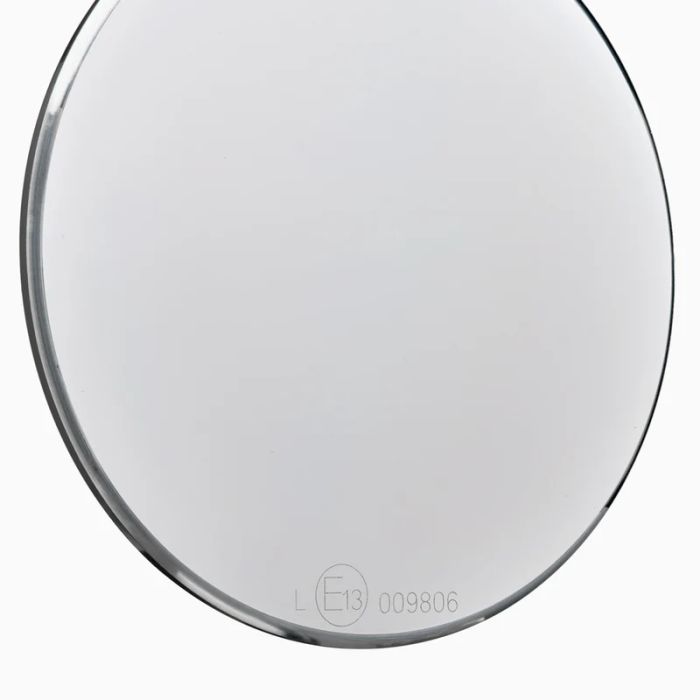

motogadget now exclusively presents its glassless mirror series mo.view. The special feature of this motorcycle mirror is the patented mirror surface, which is machined directly into the metal body. The aluminum itself is the mirror surface! A weightless design without edge and frame is possible and the mirror body itself becomes very thin and light. Shattered glass or fallen out glass are simply not possible!

An elaborate fly-cutting process, using diamond cutting tools on ultraprecision CNC machines, machines the convex mirror surface directly out of solid aluminum. To protect the surface motogadget applies, in a vacuum, a special plasma coating which makes it absolutely resistant to scratches, corrosion and oxidation.

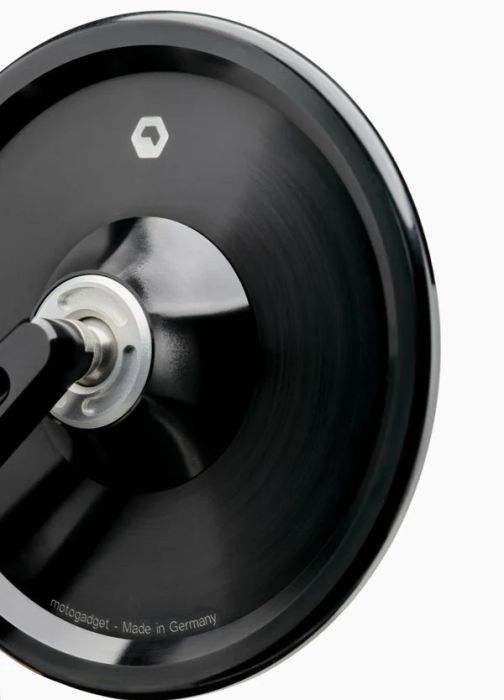

The mirror and mirror arms are CNC machined from billet aluminum. Deep black anodizing gives them a distinguished appearance. All components such as bolts and ball-joints are made of stainless steel. This makes for precise and stable adjustment of the mirrors.

mo.view classic 110 pivot

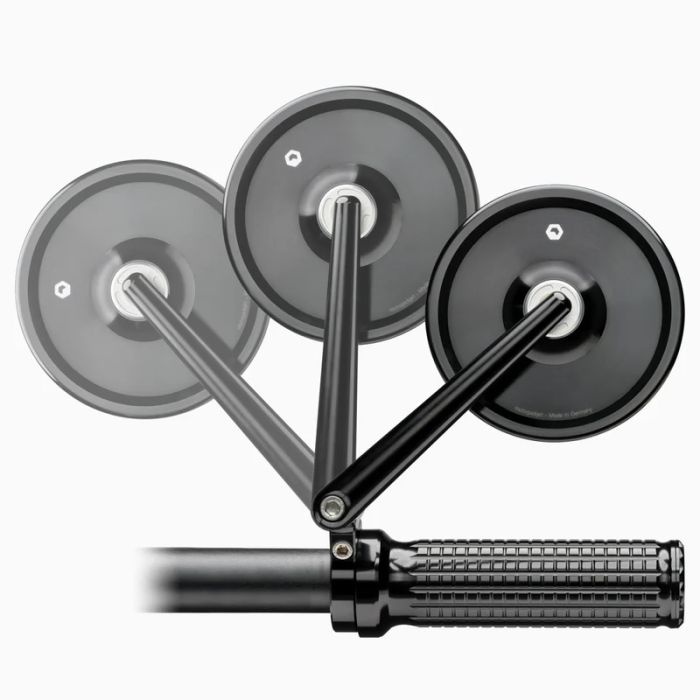

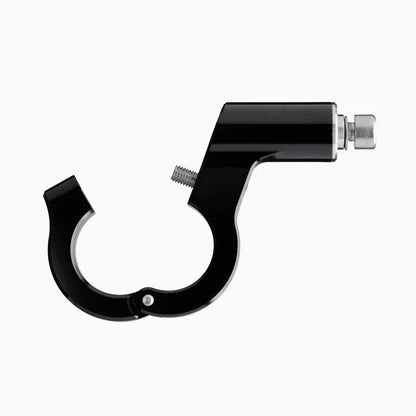

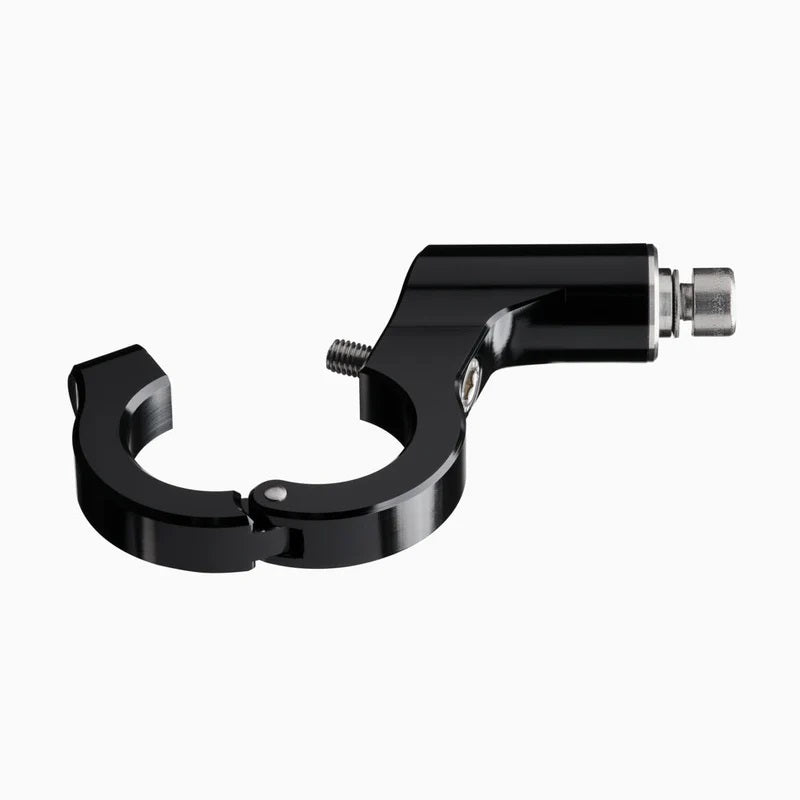

The compact solution with 110mm arm length, for scrambler or super moto. Quick installation with a wide range of mounting options without modifications to the handlebars. The high-quality, CNC-milled folding clamp is extra narrow for minimum space requirements. The integrated flip mechanism for folding the mirrors is ideal for narrow passages, when transporting vehicles or when there are space problems in the garage. The mirror has ECE marking and can be mounted above or below the handlebars.

Dimensions

Diameter of the mirror body: 99 mm
Thickness of the mirror body without ball head: 5.6 mm
Length of the mirror arm: 110 mm
can be used for 22.2 mm (7/8 inch) or 1 inch handlebars, depending on the version
Clamp width: 10 mm
Weight: 260g

Scope Of Delivery

1x rear-view mirror mo.view classic 110 pivot, with 110mm arm
1x pivot clamp
QR code for mounting and operating instructions
