Motone Plug and Play Rear Light Harness - Triumph Bobber and Scrambler 1200

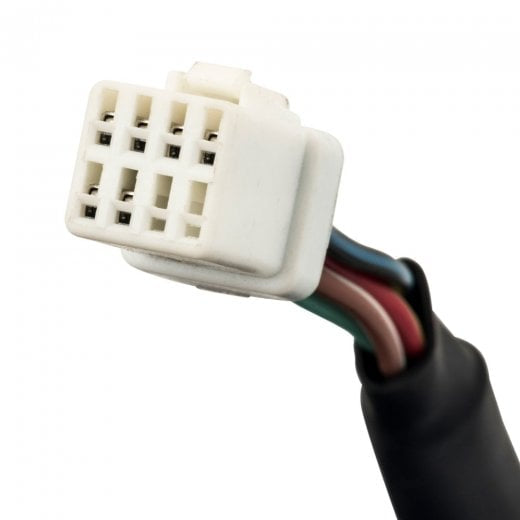

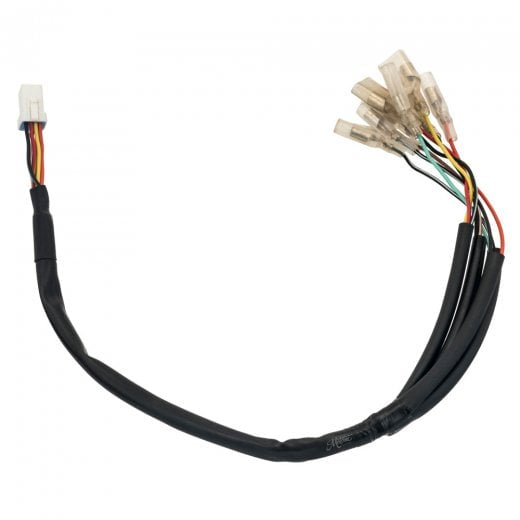

Plug and Play Rear wiring Loom - this connects directly into the rear harness plug of your bike and allows you to fit after market Taillights, Indicators, Accessories etc without having to chop into the stock loom. All ends are bullet style female connectors.

This Loom our part code DDM016 fits

All Years Triumph Bobber

All Years Speedmaster 1200

All Years Scrambler 1200

Can be used with multifunction signals also (in place of tail lights)

Note that his loom contains a resistor to stop the issue causing engine warning light when fitting aftermarket Tail lights.

 Wire color details:

Orange - R - is RHS Indicator

Brown - L - is LHS Indicator

As part of the T (Tail light) Section we have YELLOW as the Running Light, RED as the Brake Light as well as associated Earths for each of the above

The Tail light connectors all have double spades in the case that you are running for example our Pico 3in1 Rear lights which means you essentially have 2 tail lights (on on each side)

There is also a spare A Auxiliary Wire in Green which has its own earth, you can either use this to power an external device or you can use it to power a Number Plate Illumination Light if you are running a side mount plate kit which doesn't have a tail light with a license plate illumination light section of its own.

And remember the top 3 electrical faults are 1 Bad Earth, 2 Bad Earth, 3 Bad Earth.  Always check fuse box - and for belt and braces you may want to disconnect first battery before plugging in new parts...
